The Ultimate Guide to Commercial Playground Surfacing
In This Guide
- Why Surfacing Is Your Most Important Safety Decision
- All 7 Surfacing Types Compared
- The Fall Height / Depth Chart You Actually Need
- 5 Questions to Narrow Your Options
- Engineered Wood Fiber (EWF)
- Rubber Mulch
- Bonded Rubber Mulch
- Rubber Tiles
- Poured-In-Place Rubber (PIP)
- Synthetic Turf
- LMADRS Matting
- The Full Cost Picture: What's Not in That Per-Square-Foot Number
- Is Rubber Mulch Actually Safe?
- CFH Creep: The Compliance Problem Nobody Plans For
- The Other Warnings
- Special Cases and Budget Strategies
- NJ-Specific Surfacing Requirements
- Frequently Asked Questions
Hi! I'm Jay, owner of NJ Swingsets & Playgrounds. I'll tell you the one thing that surprises me on almost every commercial playground project: buyers spend 90% of their time picking equipment and maybe 10% thinking about what goes under it.
It should be closer to 50/50.
Surfacing is the safety system. Falls cause roughly 70% of playground injuries, and the surface is what determines whether a fall from an 8-foot climber results in a scraped knee or a trip to the ER. It's also where I see budgets go wrong — a buyer wants poured-in-place rubber but doesn't realize at the time that the surfacing can end up costing more than the equipment itself.
This guide covers every commercial surfacing option I work with — seven types, from ~$3/sq ft engineered wood fiber (also called certified playground mulch) up to $40/sq ft poured-in-place rubber with site work. I'll walk you through what each one actually costs installed in New Jersey, what maintenance looks like in practice, and which surfaces make sense for which situations. If you're building, replacing, or resurfacing a playground for a a playground for a school, park, daycare, church, or apartment complex in NJ, this should help.
Why Is the Price Range So Huge?
You'll see ranges in this guide that look impossibly wide — and they are. That's because playground surfacing pricing depends on several variables that can double or triple a project cost. But first, a few caveats:
These are New Jersey prices. Everything in this guide is based on what I actually quote and install in NJ and the surrounding area. If you're in a different part of the country, your numbers may be different.
The low end assumes non-prevailing-wage work with minimal site prep. A straightforward installation on a flat, open site where we can get right to work — no excavation, no rock removal, no hauling away old surfacing. That's the best-case scenario, and it exists, but it's not every project.
The high end reflects prevailing wage projects with significant site work. Municipal and public school projects in NJ often require prevailing wage labor rates, which can add 30-50% to installation costs. Add in site prep — excavation, base preparation, drainage work, old surface removal and disposal — and a $15/sq ft surfacing product can become a $30-$40/sq ft installed project.
When I give you a range for each surfacing type below, keep those two bookends in mind. Your project will land somewhere between them based on your specific site conditions and labor requirements. (For more on the full installation process — permits, site prep, timelines — see our commercial playground installation page.)
One important note before we get into it: natural grass, packed dirt, concrete, and standard bark mulch are not compliant surfacing options for commercial playgrounds. I still see them in the field. They don't meet ASTM or CPSC safety standards, and they create real liability. If that's what's under your current equipment, this guide will help you figure out what to replace it with.
Planning a surfacing project? Bookmark this guide — it's long.
Why Is Surfacing Your Most Important Playground Safety Decision?
Every commercial playground surfacing product has to meet two ASTM standards, and there's a third standard on the equipment side that ties it all together. I'll explain all three quickly because they come up on every spec sheet and every bid you'll review.
ASTM F1487 is the equipment safety standard. It covers equipment design, spacing, entrapment hazards — and it's where Critical Fall Height (CFH) comes from. Every piece of commercial playground equipment is tested and labeled with a CFH under F1487. That number — say, "this climber has an 8-foot fall height" — is the starting point of your entire surfacing decision.
ASTM F1292 is the surfacing impact attenuation test. It tells you what your surfacing must do at that fall height. It measures two things: G-max (the peak deceleration on impact — must be below 200) and HIC, the Head Injury Criteria (must be below 1,000). In plain English: when a child falls from the highest point on your equipment, the surface must absorb enough energy to keep the impact below the threshold that causes serious head injury.
ASTM F1951 is the ADA accessibility test. It measures the firmness, stability, and slip resistance of the surface for wheelchair access. This is federal law, not optional. If your playground receives public funding, serves a public audience, or is part of a licensed childcare facility, accessible surfacing is a requirement — not a preference.
So F1487 sets the fall height number on your equipment. F1292 says what your surfacing must do at that fall height. F1951 says the surface must also be accessible. Without knowing your CFH from the equipment spec, you can't spec your surfacing depth or thickness — and that's why the fall height chart later in this guide is organized by CFH.
What Are the Different Types of Commercial Playground Surfacing?
This is the chart I wish I could hand to every buyer before they start getting bids. All seven types, side by side, with real installed costs — not material-only pricing.
| Surfacing Type | Installed Cost/Sq Ft | Maintenance | Wheelchair Accessible | Lifespan | Advantages / Limitations |
|---|---|---|---|---|---|
| Engineered Wood Fiber (EWF) | $3–$5 | High | Loose fill — adequate when maintained* | 5–7 years |
+ Lowest cost by far – Needs annual topping; compacts and displaces |
| Rubber Mulch | $6–$10 | Medium | Loose fill — adequate when maintained* | 10–12 years |
+ Lasts 2x longer than EWF; less maintenance – Gets hot in sun; gets in kids' shoes...and homes |
| Bonded Rubber Mulch | $8–$17 | Low | Unitary surface — yes | 10+ years |
+ Lower-cost unitary surface – Less design flexibility than PIP; single layer |
| Rubber Tiles | $12–$21 | Very low | Unitary surface — yes | 15+ years |
+ Lowest maintenance; replace individual tiles – IPEMA-certified standalone tiles max at 8-ft fall height |
| Poured-In-Place (PIP) | $20–$27 | Low* | Unitary surface — yes | 10–15 years* |
+ Seamless; unlimited colors/graphics; highest fall heights – Most expensive; will crack around year 7–10 |
| Synthetic Turf | $17.50–$20 | Low | Unitary surface — yes | 8–12 years |
+ Premium natural look; great for inclusive/sensory play – Foam underlay may shift over time |
| LMADRS Matting | $13–$16 (excl. mulch base) | Very low | Unitary surface — yes | 5+ years (warranty) |
+ Installs over existing surface in 1 day; potentially save site prep fees for unitary surface – Not a standalone surface; needs existing base |
*PIP will crack over time. Repair costs typically begin around year 7–10. "Low maintenance" is relative — it is not zero maintenance.
*Wheelchair accessible "when maintained" — EWF and rubber mulch can meet ASTM F1951 accessibility standards when freshly installed, but they compact and displace over time. A U.S. Access Board study found loose-fill sites had the greatest number of accessibility deficiencies within 12 months. Without active maintenance, wheelchair access degrades. Unitary surfaces maintain accessibility without ongoing intervention.
*All costs are approximate installed prices. Base prep and disposal of existing surfacing are additional — see Part 3 for the full cost picture.
How Deep Does Playground Surfacing Need to Be?
Every surfacing type has its own depth or thickness requirements based on your equipment's CFH, and they vary enough that a single comparison chart doesn't tell the full story. Each surfacing section below includes the specific depth/thickness requirements for that type — including how base layers, sub-bases, and system construction affect the numbers.
The general rules to know upfront:
- Loose-fill surfaces (EWF, rubber mulch) — depth is measured in inches of material, uncompressed. More depth = higher fall height rating. EWF needs 6–12 inches depending on fall height. Rubber mulch needs 3–6 inches.
- Unitary surfaces (tiles, PIP, bonded rubber, turf) — thickness varies by product and system construction. PIP is a two-layer system (base + cap). Tiles depend on the tile plus the base underneath. Turf depends on the shock pad thickness. These aren't simple "how many inches" answers.
- The IPEMA-certified standalone rubber tiles I work with max out at 8-ft fall height. There are thicker tiles on the market that claim higher, but I haven't seen independent IPEMA certification on a standalone tile above 8 ft.
- PIP handles up to 13 ft. LMADRS handles up to 20 ft.
See each surfacing type's section in Part 2 for the specific requirements that apply to your project.
How Do I Choose the Right Playground Surfacing?
Before you dive into the detailed sections below, run through these five questions. Your answers will steer you toward the right type without wading through options that don't fit your project.
1. What is your total budget for surfacing (installed)?
If you're not sure which option fits, the easiest approach is to get pricing on a few different surfacing types and see how much each one takes from your total project budget. If you're a little further along in the process, figure out how much you can spend per square foot — then pick the best option in your range.
2. Do you have maintenance staff who will actively manage the surface year over year?
If yes, EWF and rubber mulch are viable — they cost less upfront but need ongoing attention. If no, I'd recommend a unitary surface (tiles, PIP, turf, bonded rubber) or LMADRS that doesn't require regular depth monitoring and replenishment.
3. Is ADA accessibility required or strongly preferred?
All seven types meet ADA standards. But loose-fill surfaces (EWF, rubber mulch) truly aren't the best for those in wheelchairs — they compact and displace over time. If your organization can't guarantee active maintenance, a unitary surface is the safer bet for continuous accessibility.
4. What is the Critical Fall Height of your tallest equipment?
This eliminates some options automatically. Over 8 ft? Rubber tiles are out. Over 12 ft? Synthetic turf is out. Check the fall height chart above.
5. Is your site in full sun, partial shade, or full shade?
Dark rubber surfaces get hot in direct sun. If full sun is unavoidable and shade structures aren't in the budget, lighter-colored products or EWF are the safer choice.
The Complete Breakdown
Seven sections below — one for each surfacing type. Every section has two layers. Layer 1 is the buyer basics: what it is, what it costs, what maintenance looks like, who it's best for. Layer 2 is for facilities managers, parks directors, or anyone reviewing a spec sheet or bid — the technical detail you need to ask better questions.
If you're in the early research phase, read the Layer 1 sections and skip the expandable sections. If you want to dive into the nerdy details, open Layer 2.
What Is Engineered Wood Fiber (EWF) AKA Certified Playground Mulch and Is It Right for Your Playground?
One thing to clear up right away: "engineered wood fiber" and "certified playground mulch" are the same product — the terms are used interchangeably in the industry. If you see either term on a bid or spec sheet, they're referring to the same IPEMA-certified material.
First — EWF is not the same thing as regular wood chips, bark mulch, or shredded wood from a landscaping supply yard. This is a common and important confusion. Standard wood chips are not processed to a consistent particle size, they're not tested for tramp metal content, and they are not reliably ASTM-compliant. EWF is processed specifically for playground use, tested to ASTM F2075, and IPEMA-certified.
That said, EWF is the highest-maintenance option in this guide. It compacts over time, displaces under swings and at slide exits, and needs annual replenishment — typically 10–20% of the original volume per year. Foreign objects (rocks, sticks, animal waste) are a constant reality, especially at school sites. If you don't have staff who will monitor and maintain depth, EWF will lose its impact attenuation and its ADA compliance within a year or two. Also, kids bring it home in their shoes and socks!
So why do I still recommend it? Because for the right project, nothing else touches the price. A school with a tight budget and a facilities crew that will actually maintain the surface can get compliant, safe surfacing at $3–$5/sq ft — and put the savings toward better equipment.
If you need to nerd out, here are the EWF Technical Details - click to expand
ASTM F2075 is the EWF-specific standard. IPEMA certification verifies particle size distribution, tramp metal content, and hazardous metals testing. What separates IPEMA-certified EWF from regular wood chips: chain of custody, processing standards, and particle uniformity. If it doesn't come with an IPEMA certificate, it's not EWF — it's mulch.
Depth requirements by fall height (per CPSC Handbook #325): 6 inches for fall heights up to 7 ft. 9 inches for fall heights up to 10 ft. 12 inches for fall heights up to 11 ft. These are uncompressed installation depths — the surface will compact over time, which is why annual topping is non-negotiable.
Base prep: EWF does not require a hard sub-base. Proper drainage and border containment are the critical variables. Without containment borders, EWF migrates out of the play zone within months.
What to look for:
- IPEMA certification documentation (not just a claim — the certificate number)
- Specified installation depth (uncompressed)
- Border containment type and installation method
- Maintenance plan or maintenance recommendations included
Common failure modes: Insufficient depth at installation. No maintenance plan leading to compaction below minimum depth within 12–18 months. Missing or inadequate border containment causing displacement into adjacent landscaping or parking areas. And under swings and slides, the depth changes fast — kids go nuts on those and kick the material out constantly.
EWF: Key Numbers at a Glance
- Installed cost: $3–$5/sq ft
- Required depth: 6–12 inches (by fall height, per CPSC #325)
- Lifespan: 5–7 years (with maintenance)
- Standard: ASTM F2075 / IPEMA certified
- Annual maintenance: Top up 10–20% of original volume
- Wheelchair accessible: Loose fill — adequate when maintained
Is Rubber Mulch Better Than Wood Mulch for Playgrounds?
Rubber mulch is shredded recycled tire rubber used as loose-fill surfacing. It comes in both colored and black options, and the $6–$10/sq ft price range reflects that variance — black rubber mulch is on the lower end of the range. It behaves like EWF — loose, pourable, contained by borders — but it's significantly more durable. It doesn't decompose, doesn't compact as fast, and doesn't need to be topped off every season the way EWF does.
It's still loose-fill, though. It still displaces under swings and at slide exits. It still needs periodic depth checks. And dark rubber mulch in full sun gets hot — not a chemical concern, but a genuine burn risk. Lighter-colored rubber mulch helps, but the heat issue is real on any dark surface in direct sunlight.
The other thing buyers notice: rubber mulch stains. It leaves black residue on hands, clothes, and shoes. It's not a safety issue, but it's a practical one, and parents will notice. I mention this because I'd rather you hear it from me now than from the parents who use the playground.
For parks, apartment complexes, and mid-budget projects where lower maintenance matters but unitary surfacing isn't in the budget, rubber mulch is a solid middle ground.
For the safety question everyone asks — "Is rubber mulch safe for kids?" — I address that thoroughly in Part 3. Short answer: IPEMA-certified rubber mulch, used outdoors at proper depth, is not the hazard the internet makes it out to be. But the nuance matters, and I give it a full section.
If you need to nerd out, here are the Rubber Mulch Technical Details - click to expand
ASTM F3012 is the loose-fill rubber standard. It requires particle size testing, sharp metal testing, tramp metal testing, and ASTM F1292 compliance for impact attenuation.
IPEMA certification is your buyer protection. It verifies the product meets ASTM standards — including testing for metal content. Uncertified product from unknown sources is a real risk. If the bid doesn't include IPEMA documentation, ask for it.
Depth requirements by fall height: 3 inches at 4 ft, 4 inches at 5–7 ft, 5 inches at 8–9 ft, 6 inches at 10–12 ft.
What to look for:
- IPEMA certification documentation
- Specified granule size
- Installation depth (uncompressed) by fall height zone
- Containment border specification
Common failure modes: Displacement under swings is the big one — swing mats or LMADRS matting under all swing zones is recommended regardless of surfacing type. Depth loss over time without routine monitoring.
Rubber Mulch: Key Numbers at a Glance
- Installed cost: $6–$10/sq ft
- Required depth: 3–6 inches (by fall height)
- Lifespan: 10–12 years
- Standard: ASTM F3012 / IPEMA certified
- Wheelchair accessible: Loose fill — adequate when maintained
What Is the Difference Between Bonded Rubber Mulch and Poured-In-Place Rubber?
Bonded rubber mulch gives you the natural look of loose rubber mulch with the no-displacement performance of a unitary surface. It's poured and troweled in place as one seamless layer — so nothing migrates, nothing needs topping, and you get a surface that's ADA-compliant without relying on a maintenance schedule to keep it that way.
The trade-off compared to PIP: bonded rubber is a single layer, so you don't get the EPDM colored wear surface or the design flexibility. It has a more natural, textured look — which actually works well for nature-themed installations and park settings where a smooth, colorful surface would look out of place.
Compared to PIP's $20–$27/sq ft, bonded rubber at $8–$17/sq ft is a meaningful cost difference on a large playground. For organizations that want unitary performance without the PIP price tag and don't need custom colors or graphics, this is the option that often gets overlooked.
Here's the other big advantage: bonded rubber doesn't require the same engineered crushed stone base that PIP, tiles, and turf do. In many cases it can be installed over native soil with a geotextile fabric layer — which is significantly less site prep and significantly less cost. That $5–$10/sq ft site prep I mentioned earlier for unitary surfaces? With bonded rubber, you can often avoid most of that.
Bonded rubber comes in colored or black options (not mixed/blended like PIP). Black is on the lower end of the range, colored is on the higher end.
If you need to nerd out, here are the Bonded Rubber Mulch Technical Details - click to expand
Single-layer vs. two-layer: Bonded rubber is a one-step pour. PIP is two distinct layers (SBR base for impact attenuation + EPDM cap for color and durability). This is the fundamental reason PIP costs more and offers more design options.
Binder: 100% single-component MDI-based polyurethane is the industry standard. Verify binder type in the spec — cheaper binders degrade faster under UV exposure.
Can be installed over: Native soil with geotextile fabric, crushed stone base, existing concrete, or existing asphalt. If installing over an existing hard surface, it must be in sound condition — check for cracks, drainage, and structural integrity before specifying.
The sub-base affects your fall height rating. This is important. The same thickness of bonded rubber achieves a significantly higher critical fall height when installed over soil compared to concrete — because the softer base absorbs additional impact energy. For example, 2 inches of bonded rubber on concrete is rated to about 5 ft, but the same 2 inches on soil can rate to 10+ ft. Make sure your fall height certification matches the actual sub-base your project will use.
Common failure modes: Cracking from sub-base movement or drainage failure. UV degradation of binder if a low-quality product is used.
Bonded Rubber Mulch: Key Numbers at a Glance
- Installed cost: $8–$17/sq ft (black on low end, colored on high end)
- System: Single-layer pour
- Lifespan: 10+ years
- Wheelchair accessible: Unitary surface — yes
- Sub-base options: Soil with geotextile, crushed stone, concrete, or asphalt
- Fall height: Varies by thickness AND sub-base type — higher on soil than concrete
How Thick Do Rubber Tiles Need to Be for Playground Use?
Rubber tiles are the low-maintenance workhorse of commercial surfacing. Interlocking modular tiles with an EPDM wear surface bonded to a recycled rubber (SBR) base. They connect together, sit on a flat sub-base, and do their job for 15+ years with almost no maintenance. Blow leaves off. Rinse periodically. Replace an individual damaged tile without tearing up the whole surface. That's about it.
For high-traffic zones — swing landings, slide exits, transfer station areas, wheelchair-accessible routes — tiles are hard to beat. The surface stays consistent, doesn't compact, doesn't displace, and maintains ADA compliance without a maintenance program backing it up.
Tiles also work well in hybrid installations — tiles at the high-wear, high-fall-height zones (swings, slides, ADA paths) combined with EWF under decks and lower-traffic areas. This stretches a budget without cutting safety corners. More on hybrid strategy in Part 4. See our rubber playground tiles with pricing and specs.
If you need to nerd out, here are the Rubber Tiles Technical Details - click to expand
Tile construction: EPDM wear layer (top) over SBR base layer (bottom). Verify EPDM content of the wear surface — higher EPDM percentage means better UV resistance and color retention.
Thickness by fall height:
- 1 inch at 4 ft CFH
- 2 inches at 5–7 ft CFH
- 2.75 inches at 8 ft CFH
- Maximum 8 ft — no tile option exists above this threshold
Base prep: Tiles require a firm, flat, level hard surface. Either existing concrete or asphalt in good condition, or a compacted crushed stone base (6–8 inches, 95% Proctor compaction) with drainage slope of 1–2%. Starting from bare ground, this sub-base work is a significant cost — see Part 3.
Installation around existing footings: More complex than loose-fill. Tiles must be individually cut and fitted around post footings. Factor this into your installation cost estimate — it adds labor.
What to look for:
- Tile thickness specified by CFH zone
- EPDM wear layer percentage
- Interlocking edge specification
- Sub-base specification (compaction standard, drainage slope)
Common failure modes: Tiles installed on an unprepared base that settles unevenly. Insufficient thickness for actual CFH. Seam separation from freeze-thaw cycles when tiles are installed improperly.
Rubber Tiles: Key Numbers at a Glance
- Installed cost: $12–$21/sq ft
- Thickness range: 1–2.75 inches (by fall height)
- Max fall height: 8 ft
- Lifespan: 15+ years
- Standard: ASTM F1292 compliant
- Wheelchair accessible: Unitary surface — yes
Not Sure Which Surfacing Fits Your Project?
Every playground site is different. Tell us about your project and we'll help you match the right surfacing to your budget, equipment, and maintenance capacity.
Get a Free Surfacing ConsultationHow Long Does Poured-In-Place Rubber (PIP) Surfacing Last?

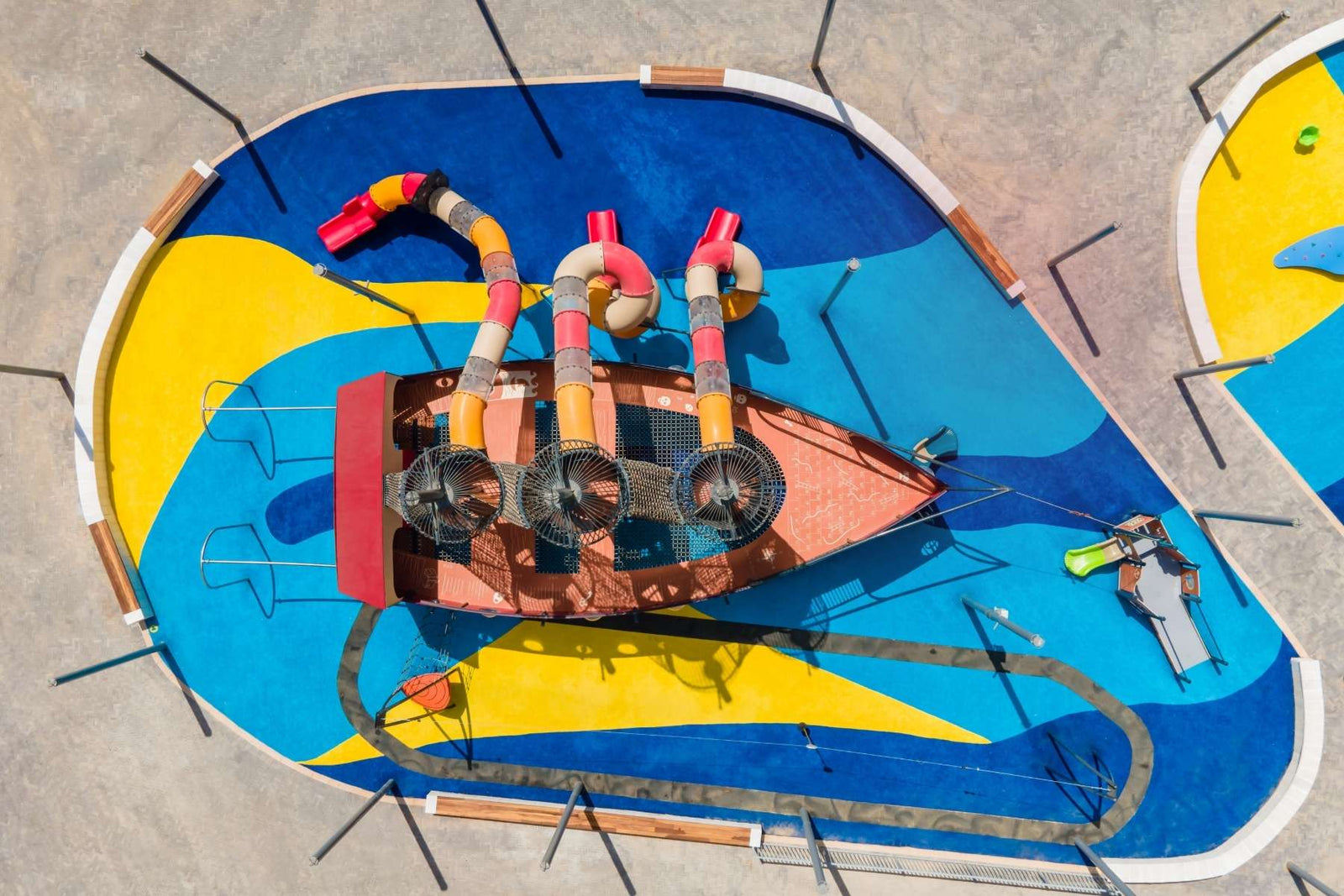

PIP is a seamless two-layer rubber surfacing system troweled in place on-site by trained installers. The base layer (recycled SBR rubber) provides the impact attenuation. The wear layer (colored EPDM) provides the color, texture, and durability. It can be made in any color, with custom graphics, logos, educational patterns, game courts — whatever you want.
On maintenance — PIP is marketed as "low maintenance," and compared to EWF, that's true. But PIP is not maintenance-free. It will crack. It will peel at edges and transitions. This is not a question of if — it's a question of when. Most PIP surfaces begin showing wear around year 7–10, and repairs aren't cheap. Budget for them.
That said, PIP is the only surfacing that gives you a seamless, fully wheelchair-accessible surface with unlimited color and design options in a single system. For fully accessible playgrounds, high-traffic municipal parks, and any project where custom graphics or color zoning matter, that's why buyers choose it.
If you need to nerd out, here are the PIP Technical Details - click to expand
Two-layer system:
- Base layer: Recycled SBR rubber buffings bound with aromatic urethane. Typical binder ratio: 16–18%. This layer provides the impact attenuation.
- Wear layer (cap): Colored EPDM granules bound with aromatic or aliphatic urethane. Typical binder ratio: 20–22%. This layer provides the color, texture, and durability. A 50/50 blend of colored EPDM and black SBR in the cap layer is a common way to reduce cost while maintaining color coverage.
Binder types for the cap layer:
| Binder Type | Best Use | Relative Cost | UV Behavior | Typical Warranty |
|---|---|---|---|---|
| Aromatic | Standard installations; most colors | Standard | Slight yellowing over 2–6 months (cosmetic only) | ~7 years |
| Aliphatic | Premium; splash pads; light/bright colors | ~2.5x aromatic | UV-stable; no yellowing | ~10 years |
EPDM vs. TPV: What Goes in the Cap Layer?
Most PIP cap layers use EPDM (Ethylene Propylene Diene Monomer) granules — it's been the industry standard for decades. But there's a newer material called TPV (Thermoplastic Vulcanizate) that some installers are switching to, especially in extreme sun or freeze-thaw climates.
The differences:
- EPDM — virgin rubber, flexible, bonds well with binder, wide color selection. Some colors can fade in heavy UV exposure over time.
- TPV — made from recycled tires, better UV color retention, holds up well in harsh weather. Costs less than EPDM. Some installers report it's more brittle and doesn't bond as strongly with binder.
The industry is split on which is better. Installers in sunny climates like Florida have reported EPDM fading and weathering faster than expected, and have moved toward TPV for most outdoor projects. Others stick with EPDM for its flexibility and bond strength. Some use blends of both.
I've only ever used EPDM. It's what we know, and it's performed well on our projects. If we start using TPV in the future, I'll update this article with what we learn.
Material overage: Industry standard is 5–10% overage for troweling waste, edge work, irregular shapes, and mixer residue. Make sure this is accounted for in the estimate.
Thickness by Critical Fall Height:
| Critical Fall Height | Base Layer | Total System (with 1/2" cap) |
|---|---|---|
| 4 ft | 1-1/4" | 1-3/4" |
| 5 ft | 2" | 2-1/2" |
| 6 ft | 2-1/2" | 3" |
| 7 ft | 2-1/2" | 3" |
| 8 ft | 3" | 3-1/2" |
| 9 ft | 3-1/2" | 4" |
| 10 ft | 4" | 4-1/2" |
| 12 ft | 5" | 5-1/2" |
| 13 ft | 6" | 6-1/2" |
Base prep: PIP requires a firm, well-drained sub-base — crushed stone (6–8 inches, properly compacted with 1–2% drainage slope) OR existing concrete/asphalt in sound condition. Inadequate drainage is the #1 cause of premature PIP failure — bubbling, delamination, and trapped moisture under the surface.
What to look for:
- System thickness specified by CFH zone
- Base layer vs. cap layer thickness specified separately
- Binder type and ratio
- EPDM cap color blend ratio (100% EPDM vs. 50/50 EPDM/SBR blend)
- Drainage plan
- Installer experience
- Warranty terms — distinguish cosmetic defects from structural defects
Common failure modes: Insufficient drainage sub-base causing bubbling. Cap layer delamination from base layer. Shrinkage cracking at edges and transitions. Inadequate base thickness for actual CFH.
PIP: Key Numbers at a Glance
- Installed cost: $20–$27/sq ft
- System: Two-layer (SBR base + EPDM cap)
- Lifespan: 10–15 years (with repairs)
- Standard: ASTM F2479
- Max fall height: 13 ft
- Aromatic binder: Standard; slight yellowing
- Aliphatic binder: Premium; UV-stable for light colors
Does Synthetic Turf Meet ADA Playground Requirements?
Synthetic turf is polyethylene fiber blades over a backing system with infill (rubber granules, sand, or a blend) and — this is the part people miss — a foam shock pad underlayment. For playgrounds, the turf alone does not meet fall height requirements for most equipment. The shock pad is what provides the impact attenuation. Make sure both components are spec'd in any bid.
Turf works well for open-play areas beyond the equipment zone, inclusive playground designs, and nature-themed settings where a green-field look is wanted. Maintenance is low: periodic brushing, infill top-up over time, and seam inspection.
For special needs and inclusive playgrounds where children may remove shoes, lie on the surface, or have extended skin contact, synthetic turf is often the best choice. It's good for sensory play and performs well in flood-prone sites with proper sub-base drainage. For more on inclusive and special needs playground design, see our commercial playground options.
If you need to nerd out, here are the Synthetic Turf Technical Details - click to expand
Turf construction: Face fiber material should be polyethylene for playgrounds — it's softer than older polypropylene products. Yarn height and weight (density) affect durability and feel. Backing system affects drainage.
Infill options:
- Rubber granules: Standard; adds cushion
- Sand: Lower cushion contribution
- Crumb rubber + sand blend: Compromise
- Organic/cork infill: Premium; eco-friendly; higher cost
Shock pad: Required for meaningful fall height protection. Foam pad sits below the turf. Pad thickness determines CFH rating. Verify that the pad specification matches your equipment's fall height — get the manufacturer's ASTM F1292 test report for the specific pad + turf combination at your required fall height.
Max fall height: 12 ft with qualifying shock pad. Varies by product — verify with manufacturer test report at actual pad thickness.
Installation around existing footings: Turf is the most complex unitary surface to install around existing footings. If equipment is already in place with multiple footings, turf installation is significantly more labor-intensive than other options. Factor this into cost estimates.
Base prep: Same firm, well-drained sub-base requirements as PIP. Drainage is critical. See Part 3.
What to look for:
- Face fiber type and weight (density)
- Infill type and specification
- Shock pad manufacturer, material, and thickness
- ASTM F1292 test report for the specific pad + turf combination at your fall height
- Seam locations and seaming method
Common failure modes: Seam separation. Infill migration creating thin zones. Sub-base drainage failure.
Synthetic Turf: Key Numbers at a Glance
- Installed cost: $17.50–$20/sq ft (includes shock pad)
- Max fall height: 12 ft with qualifying pad
- Lifespan: 8–12 years
- Wheelchair accessible: Unitary surface — yes
What Is LMADRS Matting and Can It Install Over Existing Playground Surfacing?
This is the option that nobody knows about. And it should be the first conversation with any organization that has a mulch surface and wants to upgrade to a unitary, wheelchair-accessible surface without the cost of tearing everything out and starting over.
LMADRS matting is manufactured by US Playground Surfacing. It's an interlocking rubber mat system designed to install over a certified playground mulch base.
Your PIP is cracking and peeling? If the sub-base is still structurally sound, LMADRS can go over that too.
The economics are what make this worth knowing about. No dumpster. No disposal fees. No sub-base excavation. No multi-week installation timeline. In most cases, LMADRS installs in a single day. The cost savings compared to a full tear-out and replacement with a traditional unitary surface are significant.
I recently finished the project in the photo below. The organization originally wanted PIP and new shade structures, but getting both wasn't in the budget. After receiving multiple quotes from other vendors, they came to me and I proposed LMADRS mats over their existing mulch pit. It solved multiple problems at once — saved them over $50,000, got them a wheelchair-accessible surface, and fixed the "mulch in every kid's shoes and all over the house" problem that was driving parents crazy.
The system handles fall heights up to 20 ft depending on the mulch depth underneath. It carries a 5-year factory warranty, meets ASTM F1292, and is wheelchair accessible (ASTM F1951). See full specs and pricing on our LMADRS product page.
I'll cover the specific overlay scenarios — LMADRS over EWF and over failing PIP — in Part 4: Special Cases & Budget Strategies.
If you need to nerd out, here are the LMADRS Technical Details - click to expand
Mat construction: Interlocking rubber tiles engineered specifically for overlay installation. The mats are one thickness (1/2") — it's the depth of the mulch base underneath that determines the fall height rating.
Installing over EWF: Existing EWF base must be reasonably level and compacted. The matting secures the EWF in place while providing an wheelchair-accessible wear surface. The combined system (EWF + matting) provides the CFH rating.
Installing over PIP: Existing PIP must be structurally sound — no major sub-base failure or drainage collapse underneath. Matting installs over cracked and peeling PIP, adding CFH and restoring accessibility compliance.
What to look for:
- Mulch depth specified by target CFH (6" for 10 ft, 9" for 16 ft, 12" for 20 ft)
- Site assessment for sub-base suitability (not all sites qualify)
- Warranty terms
- Expansion plan — the system is modular and expandable
Common failure modes: Installing over a sub-base with drainage failure (water trapped between matting and sub-base). Insufficient mulch depth for actual CFH.
LMADRS Matting: Key Numbers at a Glance
- Installed cost: $13–$16/sq ft installed (excluding mulch base)
- Max fall height: Up to 20 ft (determined by mulch depth underneath)
- Warranty: 5 years (factory)
- Wheelchair accessible: Unitary surface — yes
- Install time: As little as 1 day
- Certifications: ASTM F1292, Mass CMR 521
How Much Does Playground Surfacing Really Cost?
What's Not in That Per-Square-Foot Number
This is where projects go over budget. A buyer sees a per-square-foot price, multiplies it by their square footage, and thinks they have a number. They don't. Here's what gets missed.
Base preparation: PIP, tiles, and turf all need a proper sub-base. If you're starting from bare ground, that means excavation, 6–8 inches of crushed stone, compaction, and drainage sloping. This alone can add $5–$10/sq ft depending on site conditions. On a 3,000 sq ft playground, that's $15,000–$30,000 before a single piece of surfacing goes down. (Bonded rubber is the exception here — it can often go over native soil with geotextile fabric, skipping most of that cost.)
Disposal of existing surfacing: Replacing old PIP means demolition, a dumpster, landfill fees, and labor. Full PIP removal on a 2,000 sq ft playground can run $5,000–$15,000 before the new surface is even ordered. Old rubber tile removal is similar. This is the cost that kills budgets on resurfacing projects — and it's exactly why LMADRS matting exists as a retrofit alternative.
Travel and site access: Remote or difficult-access sites add to installation cost. If a surfacing crew can't get a mixer truck to your site, costs go up.
Is Rubber Mulch Actually Safe for Children?
I'm addressing this directly because it's the most-searched surfacing topic online, and most of what's out there is either a sales pitch or a panic reaction. Neither helps you make a decision.
The concerns are real — but the research is clear. Loose rubber mulch is made from recycled tires, which contain VOCs, PAHs, and heavy metals. Those are real chemical properties. But the question isn't whether those chemicals exist in the material — it's whether children playing on rubber mulch are exposed to them at harmful levels. Over 60 studies say no.
What the research actually found
Dr. Laura C. Green, Ph.D., D.A.B.T. (a board-certified consulting toxicologist) reviewed all the available evidence and submitted a formal memorandum to the U.S. Consumer Product Safety Commission. Her conclusion: rubber mulch is "neither known nor reasonably expected to cause cancer, and is otherwise safe for use in playgrounds."
Her assessment looked at every route of exposure:
- Skin contact: California OEHHA tested recycled rubber products — no skin irritation or sensitization. Researchers at Robert Wood Johnson Medical School (right here in NJ) tested crumb rubber with simulated sweat — no significant health risks.
- Ingestion: UC Berkeley found that ingestion of tire shred did not elevate a child's risk of developing cancer. Cal OEHHA detected 22 chemicals in simulated digestion — none at toxic concentrations.
- Inhalation: The EPA confirmed that airborne levels of particulates, metals, and VOCs from rubber mulch are within acceptable environmental tolerances — comparable to other surfaces like asphalt.
The Connecticut, New York, and New Jersey state health departments have all independently reviewed the evidence and reached the same conclusion: no significant health risk.
Our supplier: Playsafer by Rubberecycle
I can't speak for every rubber mulch product on the market. What I can tell you is exactly what we use and why.
We use Playsafer rubber mulch, manufactured by Rubberecycle LLC in Lakewood, NJ. It's IPEMA-certified to ASTM F1292 for impact attenuation, validated by TUV SUD America. Rubberecycle compiled an information kit with summaries of the key independent studies — from UC Berkeley, Hofstra University, the CPSC, the Norwegian Institute of Public Health, and others. I've read them. Every one concluded no elevated health risk.
My kids play on Playsafer rubber mulch. That's not a marketing line — it's the reason I chose this supplier.
What to watch out for
Uncertified product is the real risk. Random shredded tire rubber without IPEMA certification and without chain-of-custody documentation — that's where the concern is legitimate. If a bid includes rubber mulch without IPEMA certification, ask why.
The staining is real: Rubber mulch leaves black residue on hands, clothes, and shoes. It's not a health hazard, but parents will notice. I'd rather you hear it from me than from the first parent who picks up their kid.
What Happens When You Add Equipment to an Existing Playground?
I call this "CFH creep."
Here's the scenario: a school installs a playground with a 4-foot deck height. They put in 6 inches of EWF. Perfectly compliant for that fall height. Three years later, they add a swing set with an 8-foot fall height to the same play zone. Nobody checks the surfacing depth requirement for the new fall height. That playground is now out of compliance — an 8-foot fall height needs 9 inches of EWF, not 6.
As a CPSI, this is something I have to check on every site visit. It creates real liability exposure, especially for municipalities and schools. If a child is injured falling from swings onto surfacing that's only rated for 4 feet, the organization owns that problem.
Adding equipment to an existing playground? A CPSI inspection should be your first step — not your last. Contact us for a site assessment
What Are the Most Common Playground Surfacing Mistakes?
Drainage under unitary surfaces: PIP, rubber tiles, and turf all require properly drained sub-bases. Water trapped under a unitary surface causes bubbling (PIP), delamination, and freeze-thaw damage. This is the #1 preventable cause of premature surfacing failure. Make sure there's a drainage plan in place before installation starts.
Swing zones need extra attention: Even with EWF or rubber mulch, swing areas displace rapidly from the kick-out motion. Every swing installation — regardless of surfacing type — should have swing mats or LMADRS matting under the swing bays. This is something I include in every project plan because it prevents the #1 maintenance complaint on any playground.
ADA path of travel: ADA compliance isn't just about what's under the equipment. The accessible route to and through the playground must also meet ASTM F1951. I've seen this missed on partial resurfacing projects where the equipment zone gets upgraded but the path from the parking lot or sidewalk to the play area is still gravel or packed dirt. That's a compliance failure.
How Can I Save Money on Playground Surfacing Without Cutting Safety?
Hybrid Surfacing: Zone Your Playground to Stretch Your Budget
This comes up a lot on mid-budget projects, and it's almost never discussed in surfacing guides online.
The idea is straightforward: put your unitary surfacing across the full use zones of each piece of equipment, and use less expensive materials for the pathways connecting them. Every swing bay, every play structure, every climber area gets one consistent unitary surface — rubber tiles, PIP, whatever the project calls for. But the pathways between those zones don't necessarily need the same treatment. If accessibility is required on the paths, stone dust or decomposed granite can get you there at a fraction of the cost of running PIP wall-to-wall.
It's not my preferred way to do things — I'd rather see one consistent surface across the whole playground if the budget allows it. But when the budget doesn't allow it, mixing pathway materials is one of the most effective ways to bring a project back into range without compromising safety in the areas where it matters most.
Option A: Full PIP — estimated $69,000–$81,000 (surfacing only)
Option B: Full rubber tiles — estimated $36,000–$63,000
Option C: Hybrid (rubber tiles across 2,200 sq ft use zones + EWF on 800 sq ft pathways) — estimated $28,800–$50,200
Option C puts proper unitary surfacing everywhere it needs to be, with the savings coming from the pathways — not the play areas. Again, I'd avoid this if I can, but the option is there.
This approach is common on school and park projects where the budget is real but not unlimited.
LMADRS Matting Over Existing EWF
This is probably the scenario I see most often: a school or daycare has EWF that's been compacting for years. There are holes in high traffic areas. The surface looks tired. They assume they need to rip everything out, haul it away, and start over. That's one option — and sometimes it's the right one. But it's not the only one.
In most cases, LMADRS matting installs directly over existing EWF. No excavation. No dumpster. No disposal fees. No sub-base work. Just top off with the right amount of fresh EWF. The matting secures the EWF in place and provides a new wheelchair-accessible wear surface on top. The combined system — EWF underneath plus matting on top — delivers more than the required fall height rating.
The cost difference compared to full tear-out and replacement is significant. You're eliminating the demolition, the disposal, and the sub-base prep — which are often the most expensive parts of a resurfacing project.
LMADRS Matting Over Failing PIP
PIP cracking and peeling after 10 years? That's expected. But full PIP demolition and replacement — including hauling off the old surface — can run $5,000–$15,000+ just for removal before you even order the new material. For a lot of organizations, that demolition cost is the budget-killer.
If the PIP is cracking or peeling but the sub-base underneath is still structurally sound — no major drainage failure, no significant bubbling from water intrusion — LMADRS matting can install directly over the failing PIP. It adds fall height protection and restores ADA compliance without the demolition cost.
When this does NOT work: If your PIP has major drainage failure, significant bubbling, or the sub-base has collapsed or shifted, the problem is underneath — not on the surface. In those cases, demolition is unavoidable. LMADRS can't fix what's happening below the surface. I'll be straight with you about that on a site visit.
Can You Combine Surfacing Components from Different Manufacturers?
This comes up more than you'd think. A buyer sees that a shock pad is rated for 12 ft under turf, and figures they can put rubber tiles on top of the same pad and get the same fall height. Makes sense in theory — the pad is doing the impact absorption, so what's on top shouldn't matter, right?
As a CPSI, I'm honestly not sure. ASTM F1292 tests the complete system as installed — surface, pad, infill, and base all together. So a 12-ft rating on a turf + shock pad system means that specific combination was tested and passed. But I haven't found any research or industry guidance that specifically says you can't combine individually certified components from different manufacturers. There's no published study on it either way.
I haven't combined surfacing types like this on any of my projects. If there's a CPSI reading this who has experience with it or knows the answer, I'd genuinely appreciate hearing from you — email me at jays@njswingsets.com.
For everyone else, I err on the side of caution and don't do this. Until you see an update on this article, I'd recommend doing the same.
What Are the NJ Playground Surfacing Requirements?
Most surfacing guides online cover ASTM and CPSC standards and stop there. If you're buying surfacing for a playground in New Jersey, there's a state layer on top that matters.
N.J.A.C. 5:23-11 — NJ Playground Safety Subcode: This is New Jersey's state-level playground safety code, enforced through the Department of Community Affairs. It covers surfacing requirements for publicly accessible playgrounds — municipal parks, school grounds, public recreation areas. If your project involves a public entity in NJ, this code applies.
N.J.A.C. 3A:52 — Manual of Requirements for Child Care Centers: This code applies to all licensed daycare and child care center outdoor play areas in New Jersey. If your organization is licensed by the state as a child care provider, your surfacing must meet these specific requirements — not just the general ASTM standards.
Why this matters practically: NJ buyers operating under state licensing (daycares, child care centers) must comply with 3A:52 specifically. Municipal parks projects may need code compliance documentation for permitting. Having a local CPSI on the project provides the compliance documentation that protects your organization — that's not something an out-of-state dealer or online surfacing supplier can provide.
Buying playground surfacing in NJ? Let's make sure your project meets state code requirements from day one. Contact us for a compliance consultation
Playground Surfacing FAQ
What is the safest playground surfacing material?
There is no single "safest" material — safety depends on proper installation depth or thickness matched to your equipment's Critical Fall Height. Any ASTM F1292-compliant surfacing installed at the correct depth for your fall height provides adequate impact protection.
What playground surfacing is required for ADA compliance?
Any surfacing that meets ASTM F1951 (firmness, stability, and slip resistance) qualifies for ADA compliance. All seven types in this guide meet F1951 when properly installed. However, loose-fill surfaces (EWF, rubber mulch) lose compliance when they compact or displace without maintenance. Unitary surfaces maintain compliance without ongoing intervention. There's a difference between a surface that passes an F1951 lab test and one that's genuinely easy to navigate in a wheelchair. EWF can technically meet the standard on installation day, but anyone who's tried to push a wheelchair through loose fill that's been kicked around for six months knows the reality doesn't match the test result. If wheelchair accessibility is a real priority for your project — not just a checkbox — a unitary surface is the honest answer.
How often does playground surfacing need to be replaced?
EWF lasts 5–7 years with annual topping. Rubber mulch lasts 10–12 years. Bonded rubber and PIP last 10–15 years (PIP will need repairs starting around year 7–10). Rubber tiles last 15+ years. Synthetic turf lasts 8–12 years. LMADRS matting carries a 5-year factory warranty. All lifespans assume proper installation and normal use.
Can you install new surfacing over old surfacing?
Yes — The existing surface must first be assessed for structural soundness and drainage. For PIP, you can just remove and replace the cap layer. You can also just put LMADRS mats over existing PIP. LMADRS matting is designed to install directly over existing EWF or failing PIP without excavation or disposal. This is the fastest and most cost-effective option for organizations with a failing surface and a tight budget.
What is LMADRS matting?
LMADRS stands for Low Maintenance, Accessible, Durable Rubber Safety Matting. It's an interlocking rubber mat system made by US Playground Surfacing, designed to install over existing surfaces. It handles fall heights up to 20 ft, is wheelchair accessible, and can be installed in as little as one day. Cost runs $13–$16/sq ft installed (excluding mulch base). LMADRS matting carries a 5-year factory warranty, but these mats will easily last 10+ years. They're simple to lift up and put back down when the underlying mulch needs to be changed.
What is the cheapest commercial playground surfacing?
Engineered Wood Fiber (EWF), aka certified playground mulch, is the lowest-cost option at $3–$5/sq ft installed. It's ASTM-compliant and wheelchair-accessible when maintained. However, it requires annual topping (10–20% of original volume) and active depth monitoring. Over a 10-year period, the total cost of ownership may approach higher-cost surfaces that need less maintenance.
What is the difference between rubber mulch and bonded rubber mulch?
Rubber mulch is loose shredded rubber — it pours like wood mulch and needs containment borders. Bonded rubber mulch uses the same shredded rubber but binds it with polyurethane into a seamless, solid surface that doesn't displace. Bonded rubber costs more ($8–$17/sq ft vs. $6–$10 for loose) but requires almost no maintenance and is considered the superior option for a fully wheelchair accessible surface.
How thick does rubber surfacing need to be?
Thickness depends on your equipment's Critical Fall Height. For rubber tiles: 1 inch at 4 ft, 2 inches at 5–7 ft, 2.75 inches at 8 ft (maximum). For PIP: 1-3/4 inches at 4 ft up to 6-1/2 inches at 13 ft. See the full fall height chart in this guide for all surfacing types.
What is engineered wood fiber (EWF)?
EWF (also known as certified playground mulch) is processed wood fiber manufactured specifically for playground use, tested to ASTM F2075, and IPEMA-certified. It's not the same as regular wood chips or bark mulch from a landscaping supplier. EWF has controlled particle size, is tested for metal content, and meets ASTM F1292 impact attenuation requirements at specified depths.
Is rubber mulch safe for children?
IPEMA-certified rubber mulch used outdoors at proper depth does not present the risk level suggested by much of the online discussion. The concerns about recycled tire rubber chemistry are real but context-dependent. IPEMA certification is your buyer protection. The heat issue (dark rubber in sun) and staining are separate, legitimate practical concerns. See the full rubber mulch safety section in this guide.
What are the NJ playground surfacing requirements?
New Jersey has two relevant codes: N.J.A.C. 5:23-11 (Playground Safety Subcode) for publicly accessible playgrounds, and N.J.A.C. 3A:52 (Manual of Requirements for Child Care Centers) for licensed daycares. Both add NJ-specific requirements on top of federal CPSC and ASTM standards. A local CPSI can help ensure your project meets state code.
- Surfacing costs $3–$27/sq ft installed (up to ~$40 with site work and prevailing wage) — but disposal can add thousands on top
- Your surfacing choice is driven by fall height, budget, maintenance capacity, and ADA requirements
- EWF is cheapest upfront but highest maintenance. PIP is premium but not maintenance-free. Rubber tiles are the lowest-maintenance option.
- LMADRS matting can retrofit over existing failing surfaces for a fraction of full replacement cost
- Hybrid surfacing — premium surface where it matters, budget surface elsewhere — is a budget saving strategy to consider
Ready to Plan Your Surfacing?
Tell us about your playground project — existing or new — and we'll help you pick the right surfacing for your budget, your site, and your maintenance reality.
Request a Free QuoteOr call us directly: 201-670-4000
